Monarch Instrument · PRODUCT SERIES

Monarch SPSR Self-Powered Sensor Kits

Self-powered remote optical sensor interface module with internal rechargeable batteries

The SPSR-IM module supplies power to ROS-P, ROLS-P, IRS-P and MT-190P sensors. The TTL-compatible output on a BNC connector is switch-selectable as positive (0–5 V) or negative (5–0 V) pulses. Internal rechargeable batteries deliver ~40 hours of field operation between charges; the SPSR-U universal AC supply/recharger enables continuous operation from 115/230 Vac mains. SPSR-115/230 kits include the SPSR-IM module, SPSR-U power supply, ROS-P sensor with 8 ft or 25 ft cable, and 12 inches of T-5 reflective tape. The ideal portable RPM solution for use with field balancers, vibration analyzers, data loggers and frequency counters.

REFERENCE SPECIMENSPSR-KENDINDEN-BESLEMELI · 01

PORTABLEMEASUREMENT DEVICEMONARCH

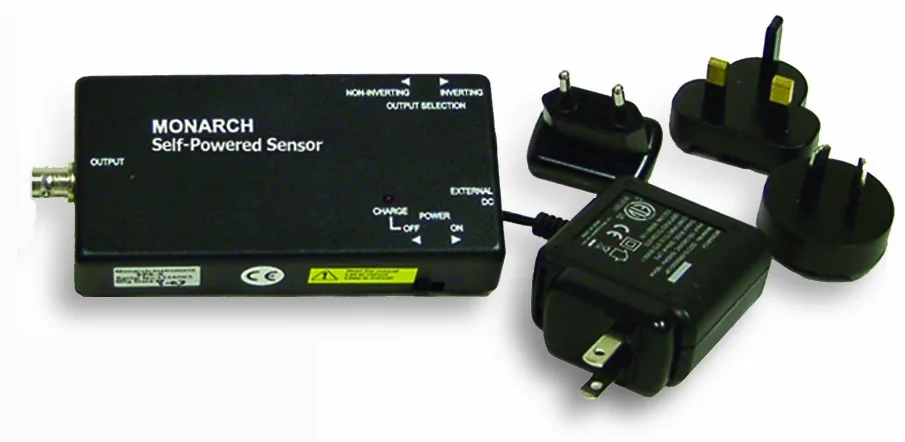

Monarch SPSR Self-Powered Sensor Kits series family image; this model's body and terminations may differ.

Models

01origin: ABD
02Output: TTL uyumlu 0–5 V / 5–0 V puls (BNC)
03Battery: Dahili Li-ion şarjlı, ~40 saat çalışma
04Housing / IP: Taşınabilir arayüz modülü
05accessories: 30 cm T-5 yansıtıcı bant (kitlerde)
06Power Supply: 115/230 Vac evrensel SPSR-U adaptör
07cable options: 8 ft veya 25 ft sensör kablosu
08compatible sensors: ROS-P / ROLS-P / IRS-P / MT-190P

Monarch SPSR Self-Powered Sensor Kits — Model Comparison

3 models · entry-level to full-featured

3 MODELS

MODEL↑ current	Light Source	speed range	sensing distance	Cable	Housing / IP	PDF
SPSR-115	Görünür Kırmızı LED (ROS-P dahil)	1 – 250.000 RPM	0,5 in – 6 ft (1,8 m)	115 Vac şebeke beslemeli kit	Self-powered modül + sensör paketi	Datasheet (PDF) — SPSR-115
SPSR-230	Görünür Kırmızı LED (ROS-P dahil)	1 – 250.000 RPM	0,5 in – 6 ft (1,8 m)	230 Vac şebeke beslemeli kit	Self-powered modül + sensör paketi	Datasheet (PDF) — SPSR-230
SPSR-IM	—	Monarch sensörlerine güç + TTL pulse çıkışı	—	AC adaptör ile şarjlı, dahili batarya	Taşınabilir arayüz modülü	Datasheet (PDF) — SPSR-IM
