B2B · PRODUCT SERIES · MONARCH INSTRUMENTREF · IMB · MONARCH INSTRUMENT · F2A-PANEL

LIVE

Monarch Instrument · PRODUCT SERIES

Monarch F2A Panel Tachometer

Panel-mount tachometer series: F2A1X and F2A3X.

F2A1X is a wall / panel module and F2A3X is a DIN-rail module. Both convert a frequency input from a Monarch sensor (e.g. RPM) or any digital source ≤12 V into an electrically isolated 0–5 Vdc or 4–20 mA output, eliminating ground loops. Requires 12–24 Vdc power; the included PM Remote (Windows) software configures RPM, rate or frequency modes. F2A3X can also act as a relay/ratemeter.

REFERENCE SPECIMENF2A-PANEL · 01

PORTABLEMEASUREMENT DEVICEMONARCH

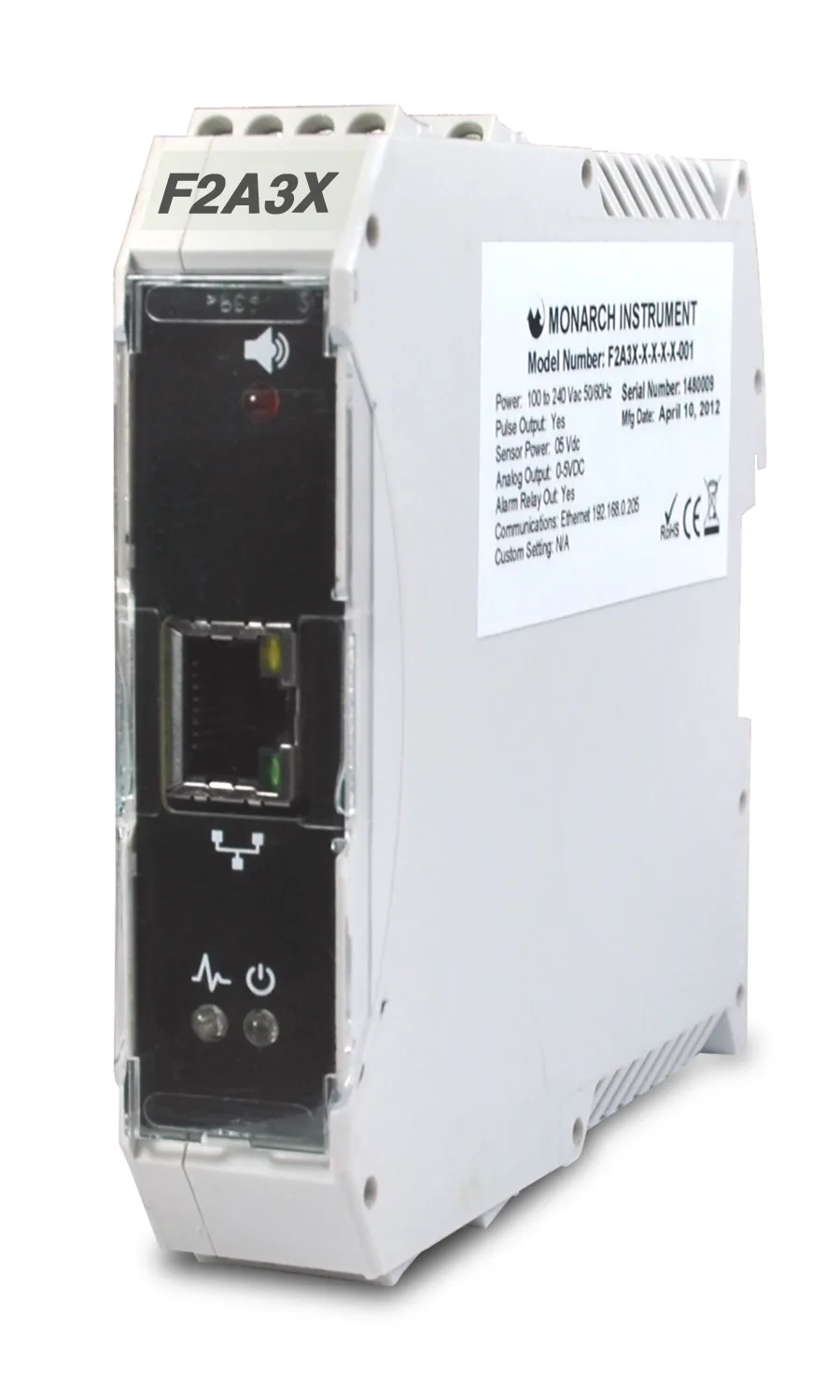

Monarch F2A Panel Tachometer series family image; this model's body and terminations may differ.

Models

01input: 0,5 Hz – 25 kHz darbe / Monarch sensör
02origin: ABD
03Output: 0–5 Vdc veya 4–20 mA (izolasyonlu)
04Accuracy: %0,01 (tipik)
05Mounting: F2A1X panel · F2A3X DIN ray
06Software / Configuration: PM Remote (Windows, USB opsiyonel)
07Isolation: Giriş–çıkış–besleme arası galvanik
08Power Supply: 12–24 Vdc, <50 mA

Monarch F2A Panel Tachometer — Model Comparison

2 models · entry-level to full-featured

2 MODELS

MODEL↑ current	Mounting	Power Supply	Part No	Output	family	PDF
F2A1X	Duvar / panel	12–24 Vdc, <50 mA	6900-010	0–5 Vdc veya 4–20 mA	Frequency to Analog Converter	Datasheet (PDF) — F2A1X
F2A3X	DIN rayı (35 mm)	12–24 Vdc	6900-030	0–5 Vdc veya 4–20 mA + relay	Frequency to Analog Converter / Tachometer	Datasheet (PDF) — F2A3X
