MTL
Japanese engineering in micro encoders and linear measurement; compact, high-resolution solutions for semiconductor, medical and precision motion applications.
MTL (Microtech Laboratory) has manufactured high-precision micro encoders, multi-turn absolute encoders, and linear measurement systems in Japan since 1971. The product line covers a wide diameter range from φ5 mm to φ200 mm, optical and magnetic technologies, SSI serial communication, and industrial environment-resistant designs.
- Origin
- Japonya
- Series
- 18
- Categories
- 0
- Total Models
- 0
Authorized Distributor · IMB Electric
PRODUCT GROUPS
MTL portfolio
Series organised by primary product group. Each group is engineered for a distinct application profile.
01 · PRODUCT GROUP
Position Sensors
Industrial position sensors for linear, angular and tilt measurement
Series: ABSOLUTE-ENCODER · INCREMENTAL-ENCODER · WIRE-DRAW-LINEAR-SCALE
Absolute Encoder
φ6–φ100 mm absolute encoders — single-turn & multi-turn with SSI serial output
- Output
- SSI seri haberleşme
- Multi Turn
- 64 – 256 tur (pilsiz)
Incremental Encoder
Incremental encoders from φ5 mm to φ180 mm — 1,024 to 216,000 P/R
- Output
- A/B/Z + line driver / open collector
- Resolution
- 1.024 – 216.000 P/R
Wire-Draw Linear Scale
Long-stroke measurement without guide rails — wire-draw linear scales
- Type
- Absolute (MLA) + Inkremental (MLS)
- Resolution
- 0,059 mm – 0,1 mm
02 · PRODUCT GROUP
Direct Drive Motors
High-precision hollow-shaft μDD servo motors
Series: MDS-13 · MDH-20 · MDH-20G · MDH-30 · MDH6-30 · MDH-40 · MDH12-40 · MDH-40G · MDH-60 · MDH-70 · MDH-70G · MDH-100 · MRS-70
MDS-13 Series
World's smallest direct-drive servo motor (φ13)
- Encoder
- Optical absolute
- Diameter
- φ13 mm
MDS/MDH-20 Series
World's smallest hollow-shaft DD servo motor (φ21)
- Diameter
- φ21 mm
- Resolution
- 144,000 C/R

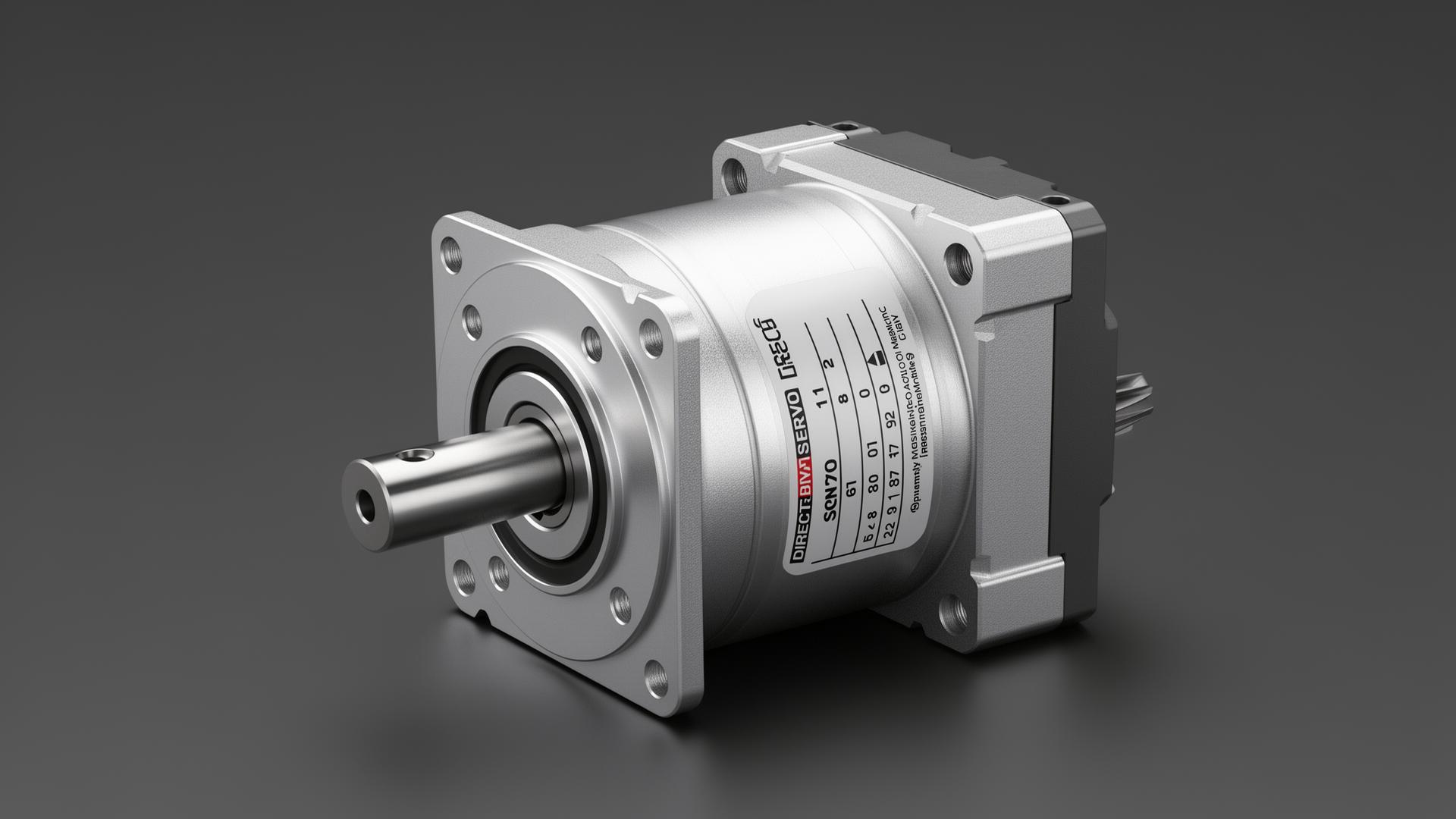

MDS/MDH-20 Gear Series
φ21 hollow-shaft DD + low-ratio gear combination
- Diameter
- φ21 mm
- Gear Ratio
- low ratio planetary

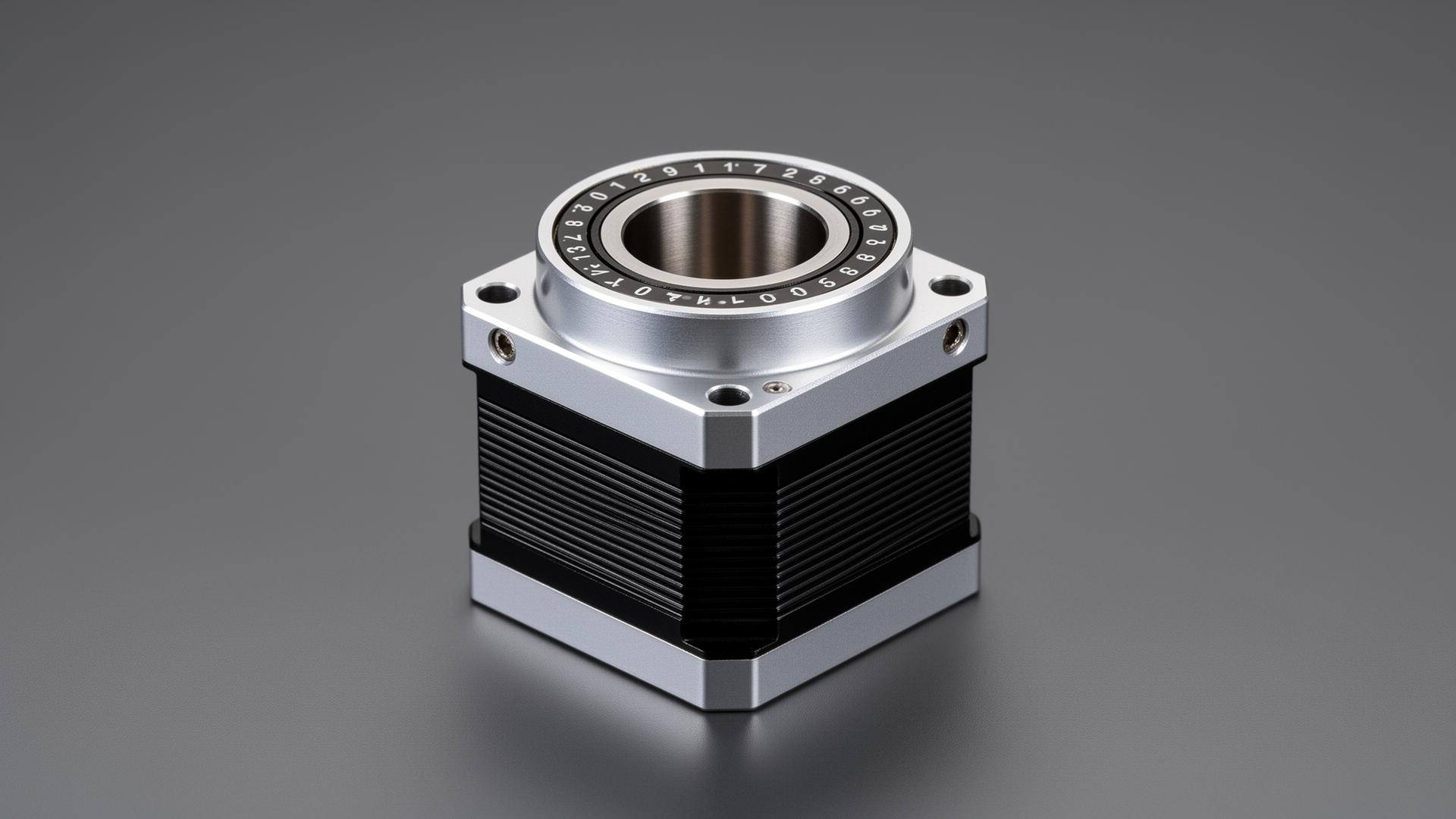

MDS/MDH-30 Series
φ30 mm, compact high torque for dispensers and gimbals
- Diameter
- φ30 mm
- Peak Torque
- up to 1 Nm
MDH(6)-30 Series
φ30 + φ6 hollow shaft for dispensers with air-line pass-through
- Diameter
- φ30 mm
- Peak Torque
- up to 1 Nm

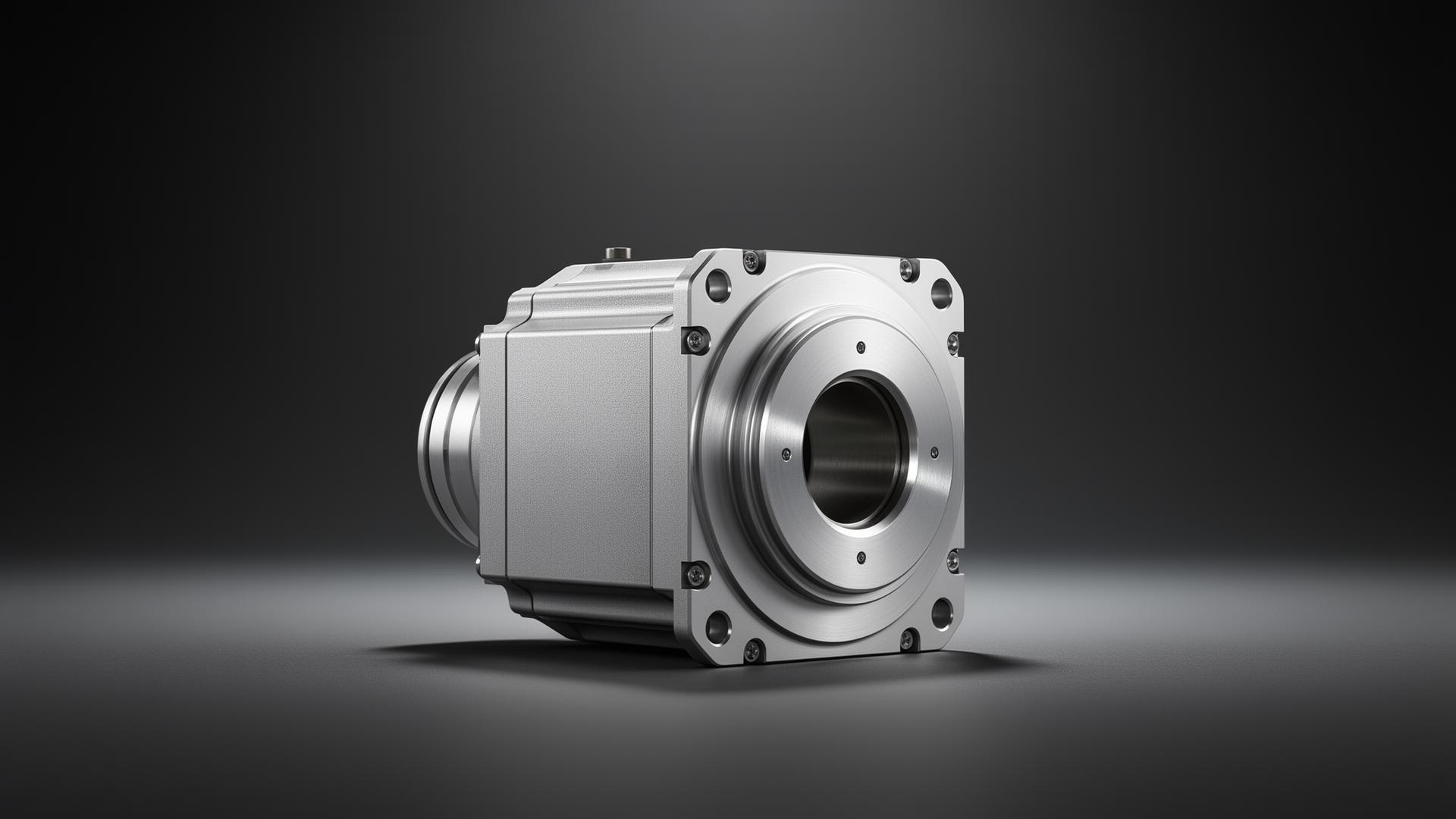

MDS/MDH-40 Series
φ40 mm for robot wrists and alignment stages
- Encoder
- Optical
- Diameter
- φ40 mm
MDH(12)-40 Series
φ40 + φ12 enlarged hollow shaft
- Diameter
- φ40 mm
- Resolution
- 1,296,000 C/R
MDS/MDH-40 Gear Series
φ40 DD + gear; higher torque density
- Gear
- planetary
- Diameter
- φ40 mm
MDH-60 Series
φ60 mm compact DD with large hollow shaft
- Diameter
- φ60 mm
- Peak Torque
- up to 9.6 Nm class
MDH-70 Series
φ70 mm DD as a replacement for rotary actuators and index tables
- Diameter
- φ70 mm
- Resolution
- 65,536 C/R
MDH-70 Gear Series
φ70 DD + gear; powerful torque for QDD joints
- Gear
- planetary
- Diameter
- φ70 mm

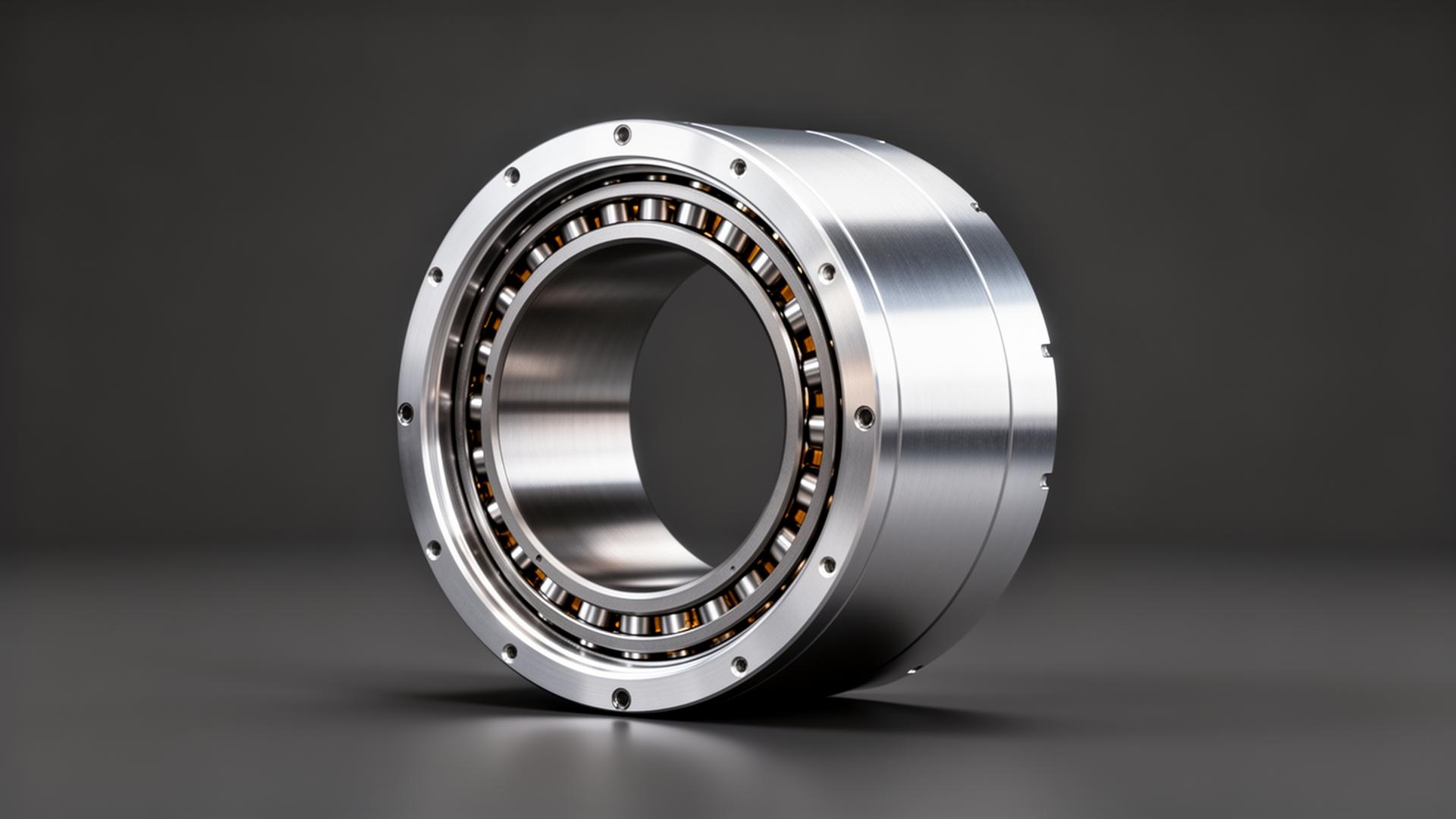

MDH-100 Series
φ100 mm — most powerful μDD motor in the series
- Diameter
- φ100 mm
- Peak Torque
- 9.6 Nm

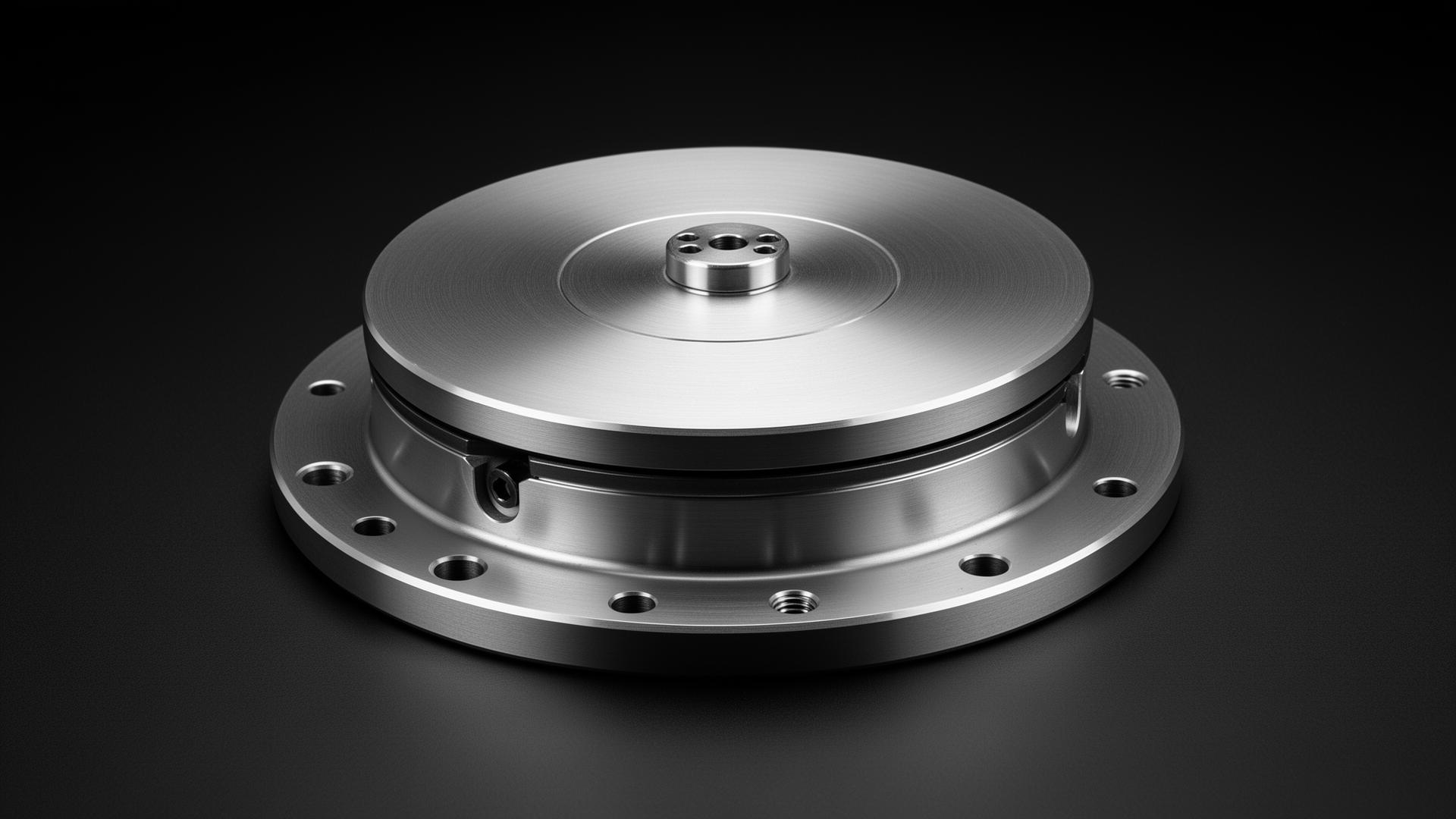

MRS-70 Series
φ70 turntable rotary actuator — compact, high-precision
- Form
- turntable
- Diameter
- φ70 mm
03 · PRODUCT GROUP

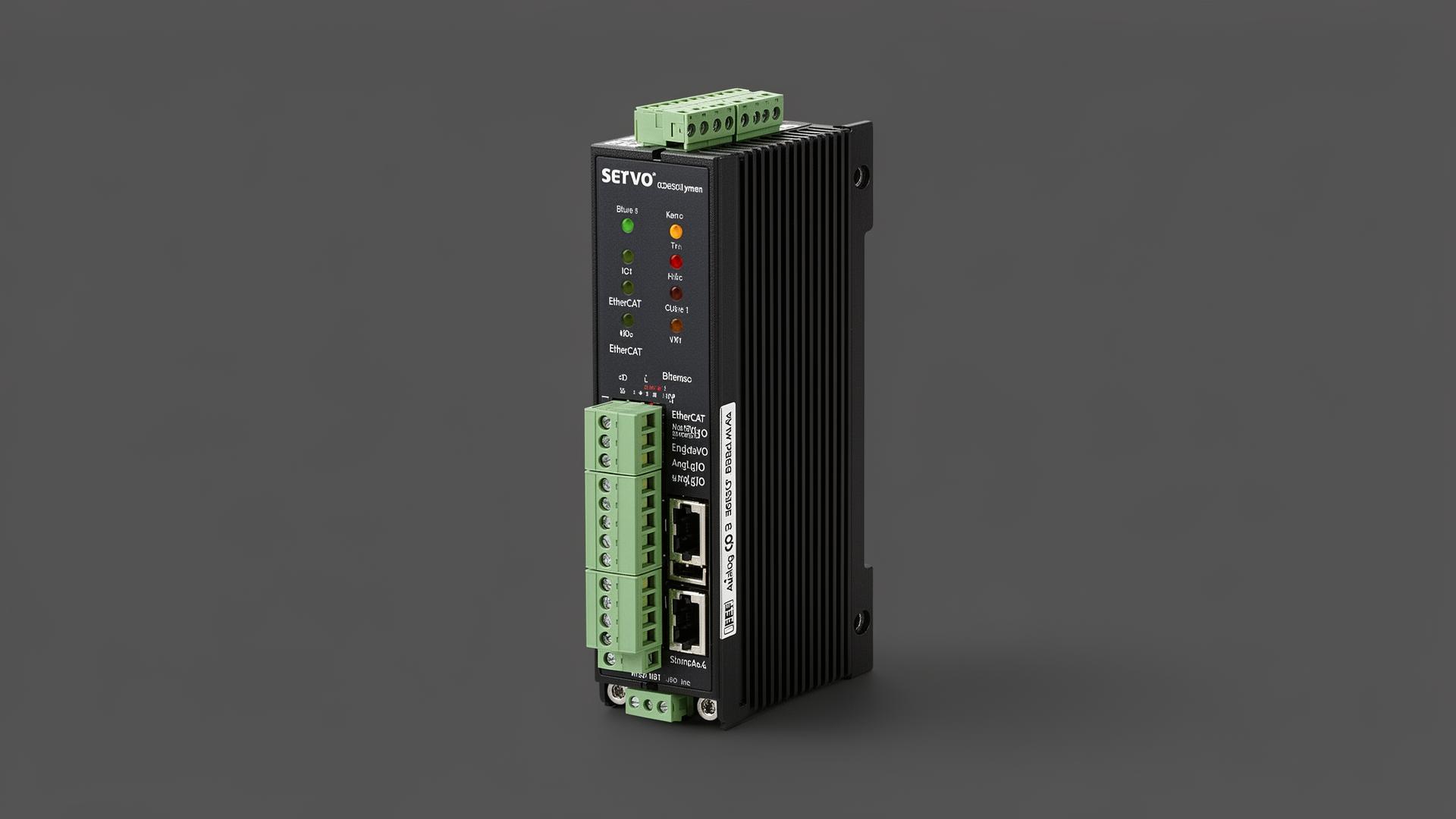

Servo Drivers
Compact servo drivers for μDD motors
Series: MC-200-7220
04 · PRODUCT GROUP
Speed Sensors
Non-contact optical, laser and infrared RPM sensors
Series: ROLLER-ENCODER
