What is the P series MiniTACTOR™ and which applications is it built for?

The GIGAVAC P series MiniTACTOR™ is a hermetic DC contactor family that delivers GIGAVAC's patented power-switching technology in a compact and lightweight (100-140 g) body. Sensata Technologies positions it under the "Pre-Charge Contactors" category. Typical applications: EV and industrial pre-charge circuits, battery charge/discharge systems, photovoltaic (PV) and solar, ESS connection control, telecom power systems, DC fast-charging stations and compact power electronics. Being significantly lighter than other hermetic contactor families is the main reason it is chosen for space- and weight-constrained applications.

What does MiniTACTOR™ mean and how does it differ from other GIGAVAC contactors?

MiniTACTOR™ is GIGAVAC's patented compact power contactor design. Key differences from the brand's other families: • Size and weight: 100-140 g — well under half a kilo and far lighter than other hermetic families (GX ~250-400 g, MX ~200-500 g). • Bidirectional switching: safe break in both current directions — ideal for battery charge/discharge. • Application focus: optimised for pre-charge circuits and solar PV; positioned as a support/auxiliary switching element rather than the main power contactor. • Economical patented design: a cost-effective alternative to high-voltage relays and large contactors. While GX/MX/HX/GV are main power-switching families, the P series sits as the supporting / specialty contactor.

Which P-series models exist and what current/voltage do they cover?

The P family covers 4 main models: • P105 — 50 A, 1200 Vdc, 112 g — general pre-charge and battery applications • P115 — 50 A, 1500 Vdc, 135 g — solar/PV (NEC 690.11 and 690.12 certified) • P125 — 30 A, 1200 Vdc, ~115 g — low-current compact applications • P195 — 80 A, 1500 Vdc, ~140 g — highest-current model, utility-scale solar and EV pre-charge All models offer 12, 24 and 48 Vdc coil options (BDA = 12 V, CDA = 24 V, FDA = 48 V). The PNC113 (30 A · 1200 Vdc, permanent NC) variant is managed as a separate part number for safety / isolation circuits.

What is bidirectional switching and why does it matter?

Bidirectional switching means the contactor can safely break in both current directions. Most DC contactors are unidirectional — arc suppression is weaker for reverse current and contact life shortens. The P series MiniTACTOR™ delivers full performance in both directions. This is critical in: • battery charge/discharge circuits (current flows both ways) • EV pre-charge circuits (capacitor charging one way, discharge the other) • bidirectional DC-DC converters • ESS hybrid systems (charge and discharge modes) A single model handling both directions cuts system cost and complexity.

Why is P115 the go-to choice for solar/PV?

P115 is the P family's model optimised for solar applications. Key features: • UL listed, cRUus — USA & Canada safety approval • NEC 690.11 — DC arc fault interrupting requirement • NEC 690.12 — rapid shutdown requirement • Approved for 600 Vdc and 1000 Vdc PV systems • 1500 Vdc maximum switching voltage — suits utility-scale 1500 V solar NEC 690 standards are the legal safety requirements for PV systems in the USA. P115 is one of the contactors that meets them directly — preferred for solar inverter inputs, string boxes, combiner boxes and rapid-shutdown circuits.

Why is the P series so light, and what advantages does that bring?

Patented MiniTACTOR™ engineering lets the P series deliver traditional hermetic contactor performance in a much smaller and lighter body. P105 is just 112 g, P115 is 135 g — well under half a kilo. Weight advantages: • Mobile applications (forklifts, AGVs, robotics) where every gram counts • EV and electric mobility — lower total vehicle mass, longer range • Solar inverter modules — modular design, easy handling and installation • Telecom cabinets — limited space and weight budget • Direct PCB mounting — minimal mechanical stress on the board At roughly 1/3 to 1/4 the weight of other hermetic contactors, the P series is the default choice in the "compact power electronics" segment.

How is the P series mounted?

P-series MiniTACTOR™ contactors can be mounted in any orientation — position independent. Two main mounting options: • Panel mount: M4 power terminal studs and M3 coil terminal studs allow standard above- or below-panel mounting. • Direct PCB mount: compact size and low weight allow direct soldering or stud connection to the board. The light frame means installation takes seconds and needs no additional support hardware. The direct-PCB option makes the P series particularly valuable for manufacturers integrating contactors at board level.

Which certifications does the P series carry?

The P series complies with: • UL508 — Industrial Control Equipment • cRUus — Canada/USA UL approval • RoHS2 — Restriction of Hazardous Substances • CE Mark of Conformity • IP67 & IP69K — water and dust protection • NEC 690.11 and 690.12 (P115 only) — solar PV safety standards Certifications vary by model — request a Sensata application review for your specific requirement.

How is the P series used in EV pre-charge circuits?

The P series MiniTACTOR™ is preferred specifically as the pre-charge contactor in EV pre-charge circuits. A typical layout: • Main contactor: GX or HX series (high-current) • Pre-charge contactor: P series MiniTACTOR™ (low-current, compact) • Pre-charge resistor: limits capacitor inrush The pre-charge contactor controls the capacitor-bank charge — preventing the very high inrush and contact welding that direct connection would cause. The P series' bidirectional switching means a single model handles both charge and discharge legs. Its low mass keeps the EV's overall system weight to a minimum. IMB Electric blog posts cover pre-charge circuit design and calculation in detail.

How is the P series used in solar inverter and string-box applications?

On the DC side of solar PV systems the P series covers several critical functions: • String inverter input: safe connection of DC power from PV strings • String / combiner box: disconnect and protection where multiple strings are combined • Rapid-shutdown circuits: panel-level fast disconnect per NEC 690.12 • DC arc-fault interrupting: automatic disconnect on DC arc per NEC 690.11 P115 is certified specifically for these applications, while P195 — at 80 A — fits utility-scale (1500 V) PV plants. The hermetic body delivers long life outdoors and in aggressive environments.

When should I pick the P series versus other GIGAVAC families?

Pick by application role and requirement: • P series (MiniTACTOR™): low-current (30-80 A) support / pre-charge contactor, weight- and space-constrained systems, solar PV needing NEC 690 certification. • GX series: main EV power contactor, high-current switching up to 800 V (general-purpose flagship). • MX series: heavy-duty industrial and military (MIL-R-6106), high inrush and weld resistance. • HX series: 1500 V utility-scale solar and electric bus/truck (high voltage + high current together). • GV series: economical multi-variant general purpose (automotive, marine, ESS). In many systems the P series is used as the pre-charge / supporting contactor alongside a GX/MX/HX/GV main contactor.

What is the electrical life of the P series?

Mechanical life is 1,000,000 (one million) cycles. Electrical life depends on load type, current, switching frequency and voltage. Typical references: • Low-current switching (pre-charge): 200,000+ cycles • Resistive load below 50 A: 100,000+ cycles • Solar string switching: 50,000-100,000 cycles Always cross-check the datasheet electrical-life curves against your application. Bidirectional switching gives consistent performance in both directions, but high-current inductive loads need care — for those, prefer the GX/MX main-contactor families over the P series.

How is the P series used in telecom applications?

The P series MiniTACTOR™ fits telecom power systems for DC supply and backup circuits. Typical uses: • 48 Vdc base-station power switching • Battery-backup connect / isolate • Pre-charge control in DC fast-charging systems • Emergency disconnect circuits in telecom cabinets Its compact size, low weight and hermetic seal are especially valuable in telecom — cabinets are space- and weight-constrained, and outdoor enclosures see humidity and dust. The 48 Vdc coil option (FDA variant) is the telecom standard.

What are the lead time and pricing for the P series?

The P series MiniTACTOR™ is one of GIGAVAC's high-demand families. Standard variants (P105, P115, P195) are usually available from stock with short lead times. Its "economical patented design" positioning gives a clear cost advantage over high-voltage relays and large premium contactors. As GIGAVAC's authorised distributor in Türkiye, IMB Electric provides stock checks, pricing and technical support. Special pricing and engineering assistance are available for solar projects, EV manufacturing and OEM applications.

B2B · PRODUCT SERIES · SENSATA | GIGAVACREF · IMB · SENSATA | GIGAVAC · P

LIVE

Sensata | Gigavac · PRODUCT SERIES

P Series MiniTACTOR™ — Compact Hermetic DC Contactors

100-140 g lightweight body · bidirectional switching up to 1500 Vdc · panel or PCB mount in any orientation · NEC 690 compliant solar variant (P115) · economical patented hermetic DC contactor

The GIGAVAC MiniTACTOR™ family delivers patented hermetic power switching in a 100-140 g body — significantly lighter than other hermetic contactors and mountable on a panel or directly on a PCB in any orientation. Bidirectional switching enables safe break in both current directions for EV pre-charge, battery charge/discharge and solar strings.

P115 is the solar specialist: UL listed (cRUus) and compliant with NEC 690.11 DC arc-fault and NEC 690.12 rapid shutdown — for 600/1000 Vdc PV and battery systems. P195 with 80 A continuous current fits 1500 Vdc utility-scale solar. An economical compact alternative to expensive HV relays and oversized contactors.

EV Pre-charge CircuitsPhotovoltaic (PV) SystemsSolar String BoxBattery Charge/DischargeEnergy Storage (ESS)DC Fast-Charging StationsTelecom Power SystemsIndustrial AutomationCompact Power Electronics

SERIES CERTIFICATIONS09APPROVALS

UL508
cRUus
IP67
IP69K
NEC 690.11
NEC 690.12
RoHS
REACH
CE

Certifications vary by model — see the corresponding model datasheet for details.

REFERENCE SPECIMENP · 01

MiniTACTOR™COMPACT DC CONTACTORSENSATA

Models

Products

01Lightweight · Panel/PCB Mount: 100-140 g
02Max Switching Voltage: 1500 Vdc
03Bi-directional Switching: Bidirectional
04Solar Certified (P115): NEC 690

P Series Minitactor NO Main Contact Contactor Models

Sorted by current rating (150A → 1000A)

5 MODELS15 PRODUCTS

SHARED IN THIS GROUPContact Form:SPST-NO

CONFIGURATOR	MODEL↑ current	Continuous Current	Voltage	Mounting	MECHANICAL LIFE	IP PROTECTION	PDF

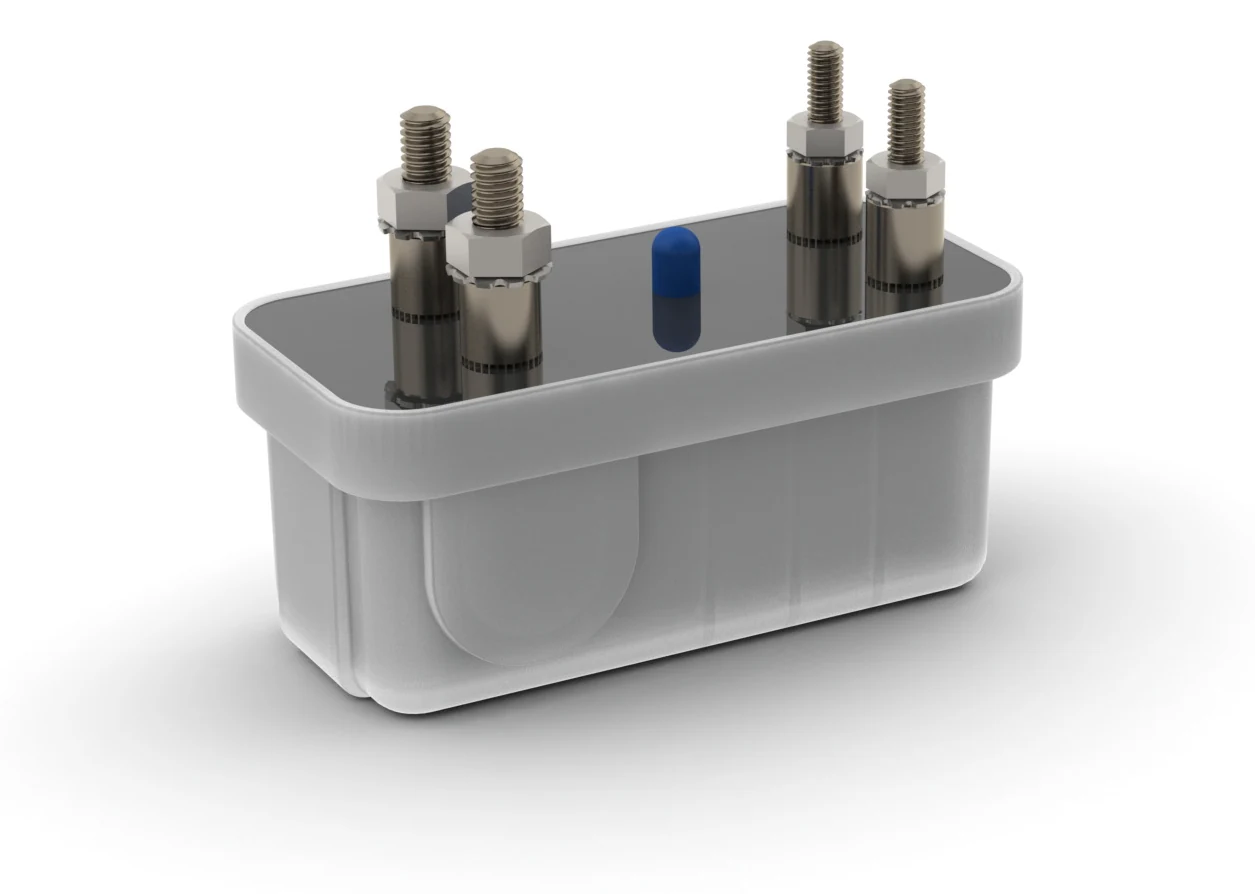

	P125	30 A	1200 Vdc	PCB / Panel	1,000,000 cycles	IP67 & IP69K	Datasheet (PDF) — P125
CONFIGURATOR · P125
	P105	50 A	1500 Vdc	Panel Mount	1,000,000 cycles	IP67 & IP69K	Datasheet (PDF) — P105
CONFIGURATOR · P105
	P115	50 A	1200 Vdc	Panel Mount	1,000,000 cycles	IP67 & IP69K	Datasheet (PDF) — P115
CONFIGURATOR · P115
	P126	60 A	1200 Vdc	Panel Mount	1,000,000 cycles	IP67 & IP69K	Datasheet (PDF) — P126
CONFIGURATOR · P126
	P195	80 A	1500 Vdc	Panel Mount	1,000,000 cycles	IP67 & IP69K	Datasheet (PDF) — P195
CONFIGURATOR · P195

NC Main Contact DC Contactors

1 MODELS3 PRODUCTS

CONFIGURATOR	MODEL	Continuous Current	Voltage	Contact Form	Mounting	MECHANICAL LIFE	IP PROTECTION	PDF
	PNC113	30 A	1200 Vdc	SPST-NC	Panel Mount	1,000,000 cycles	IP67 & IP69K	Datasheet (PDF) — PNC113
CONFIGURATOR · PNC113

MODEL CONFIGURATOR · PREF · IMB · CFG · 018 VARIANTS

LIVE

STEP-BY-STEP CONFIGURATION

Haven't picked a model from the table? Configure from scratch

Pick token by token following the manufacturer's coding table; we'll generate the exact part number and open a tailored datasheet.

BELOW · LIVE PREVIEW

TECHNICAL DIFFERENTIATORS

Why P Series?

05 · CATEGORIES

Patented MiniTACTOR™ Technology

GIGAVAC's patented power-switching design
Hermetic sealing and high switching performance in a compact body.
Hermetically sealed contact and coil construction
Clean switching in dust, humidity, aggressive gas and vibration.

Bidirectional Switching

Safe break in both current directions
Single model handles both legs of battery charge/discharge and EV pre-charge.
Make/break switching up to 1500 Vdc
Safe on/off under load — critical for protection circuits.

Compact and Lightweight Design

100-140 g weight · easy panel or PCB mounting
Far lighter than other hermetic families — ideal for space- and weight-constrained applications.
Mounted in any orientation within seconds
Design flexibility for mobile applications, small panels and PCB-level integration.

Economical Patented Solution

Sensata: "Performance of premium contactor families in an economical design"
Cost-effective alternative to high-voltage relays and large-body contactors.
UL508, cRUus, RoHS2, CE Mark certifications
International approval for industrial and commercial applications.

Certified for Solar and PV Systems

P115 certified to NEC 690.11 (DC arc fault) and NEC 690.12 (rapid shutdown)
Directly meets the legal safety requirements of PV systems.
For 600, 1000 and 1500 Vdc PV/battery systems
A single family for residential, commercial and utility-scale solar.

DATASHEET · GUIDE · APPLICATION NOTE

P Series — Technical Resources

06 · FILES

Datasheets

P105 50 A 1200 Vdc MiniTACTOR™ DatasheetSOON
P115 50 A 1500 Vdc Solar PV (NEC 690.11/690.12) DatasheetSOON
P125 30 A 1200 Vdc MiniTACTOR™ DatasheetSOON
P195 80 A 1500 Vdc Utility Solar / EV Pre-charge DatasheetSOON

Selection Guides

GIGAVAC Contactors & Fuses Selection Guide (2026)SOON
Sensata EL Contactor Portfolio Brochure (2025)SOON
